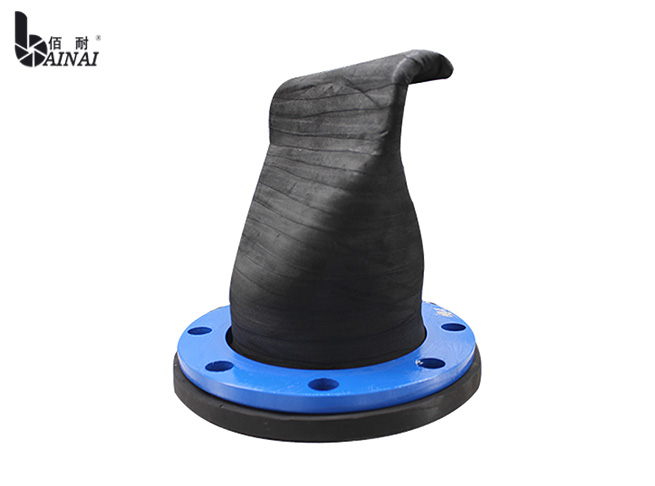

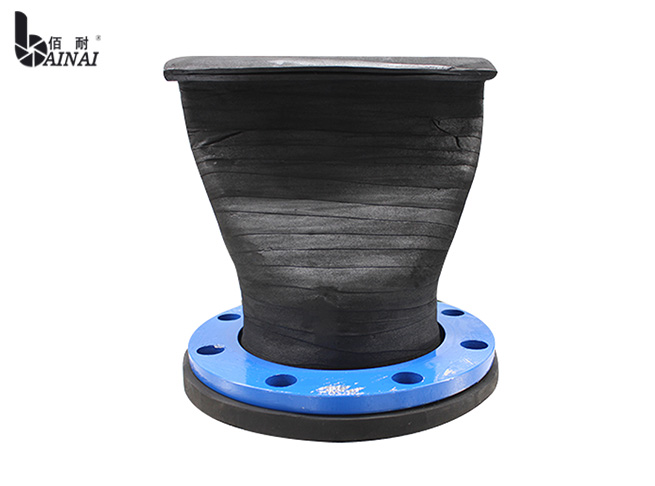

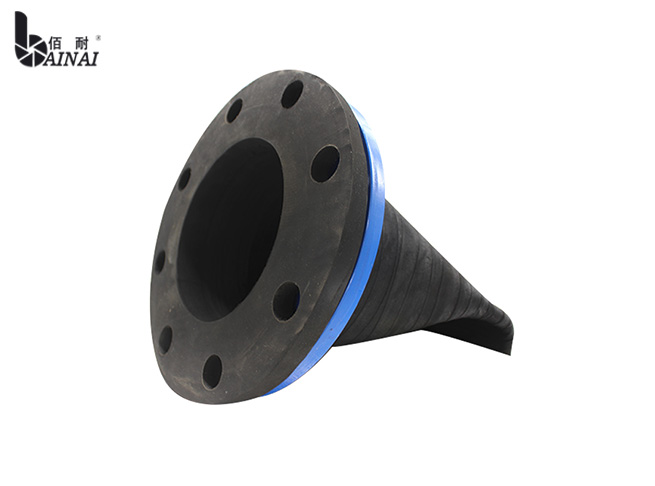

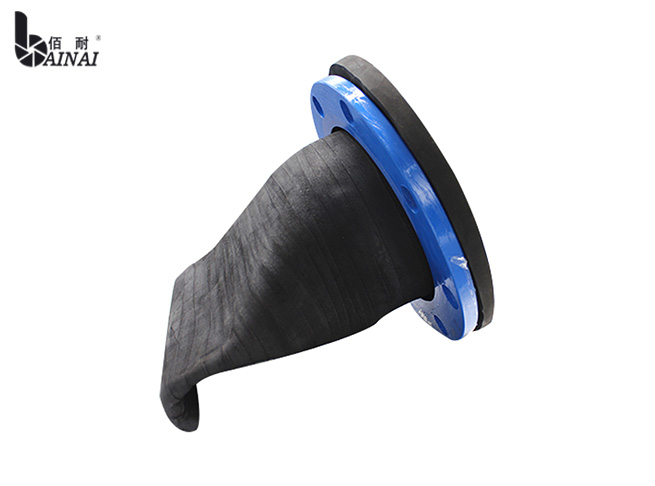

Flange type duckbill check valve is a specialized valve used to allow fluid flow in one direction while preventing backflow. It features a unique duckbill shape that opens under pressure and closes when flow stops, making it an effective solution for various fluid control applications. The flange connections on either end facilitate easy installation into piping systems.
1.Duckbill Design: The flexible, tapered shape allows for efficient flow control, with the valve opening smoothly under pressure and sealing tightly when flow ceases to prevent backflow.
2.Flanged Connections: Flange type connections provide a secure and leak-proof fit to existing piping systems, allowing for easy installation and maintenance.
3.Material Options: Typically made from rubber or elastomeric materials, these valves are resistant to corrosion and wear, ensuring durability in various operating conditions.
4.Low Pressure Drop: The design minimizes pressure loss during operation, making them suitable for systems where maintaining flow efficiency is critical.
Flange type duckbill check valves are widely used in various industries, including:
Water and Wastewater Management: Employed in pumping stations, sewer systems, and drainage applications to prevent backflow and maintain proper flow direction.
Chemical Processing: Used in pipelines transporting chemicals, where preventing backflow is crucial for safety and process integrity.
Irrigation Systems: Applied in agricultural settings to ensure proper water flow while preventing contamination from backflow.
Marine Applications: Often found in bilge and ballast systems on boats and ships, helping manage fluid levels and prevent backflow into pumps or tanks.
Overall, flange type duckbill check valves are essential components in fluid control systems, providing reliable operation and helping to maintain system integrity by preventing backflow.
