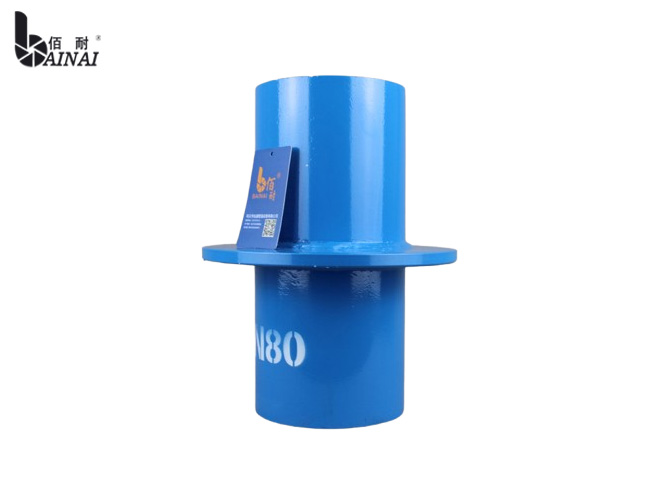

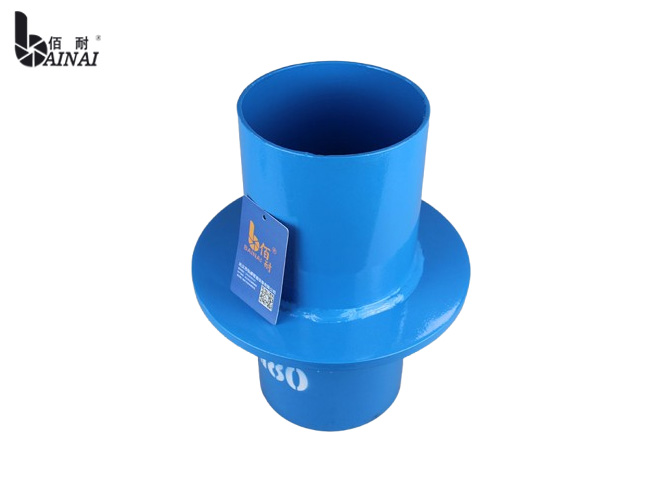

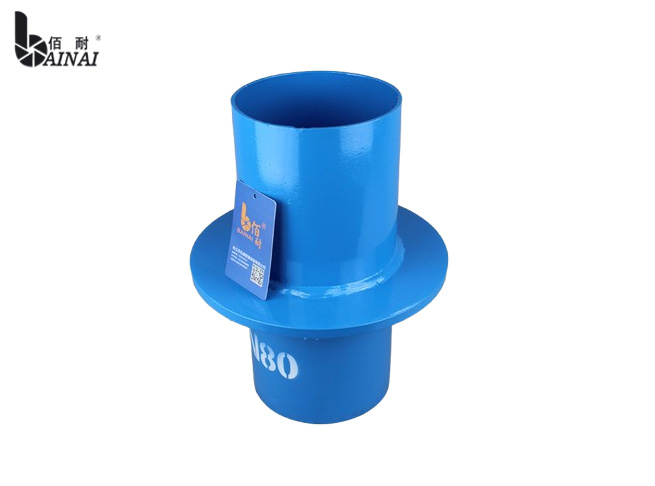

Rigid waterproof casing is a protective enclosure designed to shield sensitive equipment or components from moisture, dust, and environmental elements. These casings are typically made from durable materials, such as plastic, metal, or composite materials, and are commonly used in various applications where environmental protection is crucial.
| Nominal diameter |
D1 | D3 | D4 | δ | b | |
| mm | Inch | |||||
| 50 | 2 | 60.0 | 114.0 | 225.0 | 3.5 | 10.0 |
| 65 | 2½ | 75.5 | 121.0 | 230.0 | 3.8 | 10.0 |
| 80 | 3 | 89.0 | 140.0 | 250.0 | 4.0 | 10.0 |
| 100 | 4 | 108.0 | 159.0 | 270.0 | 4.5 | 10.0 |
| 125 | 5 | 133.0 | 180.0 | 290.0 | 6.0 | 10.0 |
| 150 | 6 | 159.0 | 219.0 | 330.0 | 6.0 | 10.0 |
| 200 | 8 | 219.0 | 273.0 | 385.0 | 8.0 | 12.0 |
| 250 | 10 | 273.0 | 325.0 | 435.0 | 8.0 | 12.0 |
| 300 | 12 | 325.0 | 377.0 | 500.0 | 10.0 | 14.0 |
| 350 | 14 | 377.0 | 426.0 | 550.0 | 10.0 | 14.0 |
| 400 | 16 | 426.0 | 480.0 | 600.0 | 10.0 | 14.0 |
| 450 | 18 | 480.0 | 530.0 | 650.0 | 10.0 | 14.0 |
1.Waterproof Design: Rigid waterproof casings are engineered to prevent water ingress, protecting the contents from moisture damage. They often meet specific IP (Ingress Protection) ratings, indicating their level of water resistance.
2.Durable Materials: Constructed from robust materials that can withstand harsh environmental conditions, including exposure to chemicals, UV radiation, and extreme temperatures.
3.Impact Resistance: Many rigid waterproof casings offer protection against physical impacts and shocks, ensuring the integrity of the enclosed equipment.
4.Sealing Mechanism: Equipped with gaskets, O-rings, or other sealing mechanisms to provide an airtight and watertight seal.
Rigid waterproof casings are widely used in various industries, including:
Electronics: Protecting sensitive electronic components and devices, such as circuit boards, sensors, and communication equipment, from moisture and dust.
Outdoor Equipment: Housing tools and devices used in outdoor or marine environments, such as GPS units, cameras, and lighting equipment.
Industrial Applications: Enclosing machinery and controls in factories or manufacturing plants where exposure to water or dust is a concern.
Medical Devices: Ensuring the protection of medical equipment and devices in environments where hygiene and moisture control are essential.
Overall, rigid waterproof casings are critical for safeguarding equipment and ensuring reliable operation in challenging environments, providing both protection and durability.
