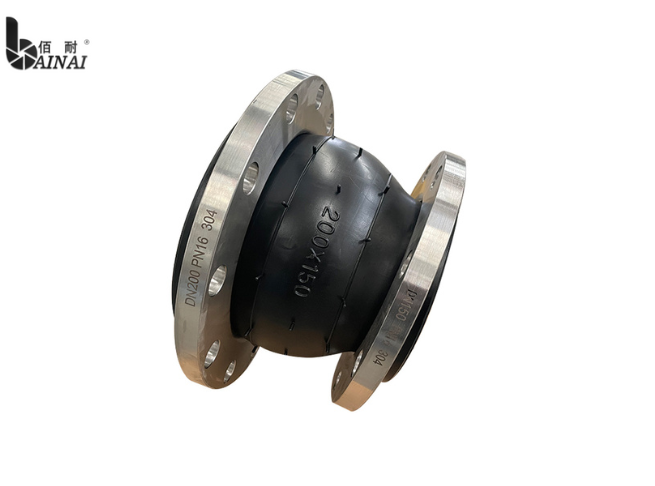

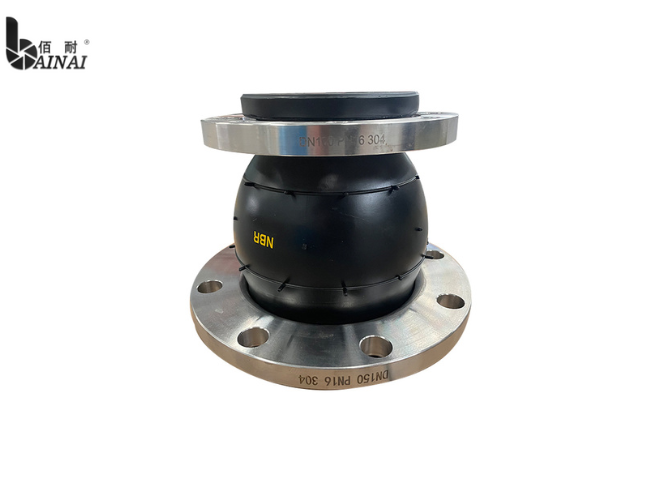

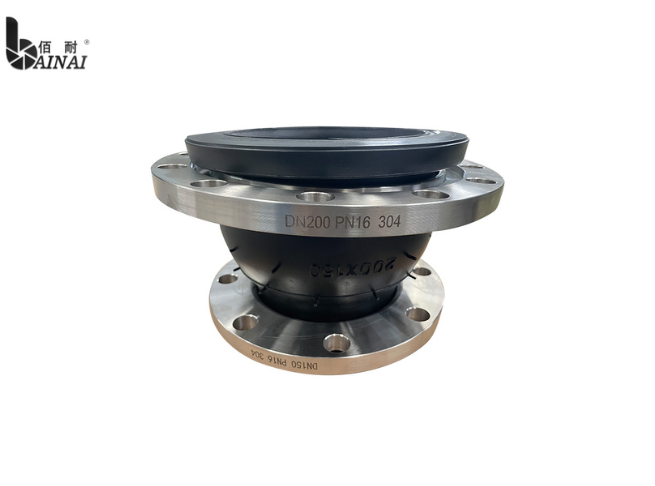

Reducing Rubber Expansion Joint | Efficient Pipe Compensator
Reducing Rubber Expansion Joint | Efficient Pipe Compensator
Reducing Rubber Expansion Joint | Efficient Pipe Compensator

Reducing Rubber Expansion Joint | Efficient Pipe Compensator
FacebookTwitterLinkedInPinterestShare

The Reducing Rubber Expansion Joint is a pipeline device designed for flexible connection and compensation between pipes of different diameters. It effectively addresses displacement, thermal expansion, and vibration issues in high-temperature, high-pressure, and complex environments, making it an ideal choice for industrial piping systems.

Email : bainai@b-nai.com
Send Message

Product Introduction

Nominal diameter  Length
(mm)		 Axial displacement Horizontal movement
(mm)		 Deflection angle
(a1+a2)		 Special
length
(mm)
mm Inch Compression
(mm)		 Extension
(mm)
32 1¼ 95 9 6 9 15° 130/150/200
40 1½ 95 10 6 9 15° 130/150/200
50 2 105 10 7 10 15° 130/150/200
65 2½ 115 13 7 11 15° 130/150/200
80 3 135 15 8 12 15° 130/150/200
100 4 150 19 10 13 15° 130/200
125 5 165 19 12 13 15° 130/150/200
150 6 180 20 12 14 15° 130/150/200
200 8 210 25 16 22 15° 130/150/200
250 10 230 25 16 22 15° 130/150/200
300 12 245 25 16 22 15° 130/150/200
350 14 255 25 16 22 15° 130/150/200
400 16 255 25 16 22 15° 130/150/200
450 18 255 25 16 22 15° 200
500 20 255 25 16 22 15° 200
600 24 260 25 16 22 15° 300
700 28 260 25 16 22 15° 300
800 32 260 25 16 22 15° 300
900 36 260 25 16 22 15° 300
1000 40 260 26 18 24 15° 300
1200 48 260 26 18 24 15° 300

Product Features:

  1. High-Temperature and High-Pressure Performance: Made from premium rubber material for long-term use under extreme conditions.
  2. Vibration and Noise Reduction: Minimizes vibrations and noise, improving pipeline stability.
  3. Reducing Design: Seamlessly connects pipes with different diameters, optimizing fluid dynamics.
  4. Excellent Corrosion Resistance: Suitable for various chemical media and harsh conditions.
  5. Durability: Anti-aging and wear-resistant, extending service life and reducing maintenance costs.

Application Areas:

  • Power Industry: Suitable for high-temperature, high-pressure pipelines in thermal and nuclear power plants.
  • Chemical Sector: For pipelines handling corrosive media in chemical facilities.
  • Oil and Gas: Used in complex pipeline networks for flexibility and compensation.
  • Metallurgical Industry: Ideal for connecting high-temperature equipment and pipeline systems.

Product Specifications:

  • Available in various diameters and lengths, with customization options to meet customer needs.

Our Advantages:

  • Professional Manufacturing: Stringent quality control to ensure compliance with industry standards.
  • Fast Delivery: Efficient production capacity to meet urgent demands.
  • Technical Support: Comprehensive pre-sales consultation and after-sales service for worry-free use.
