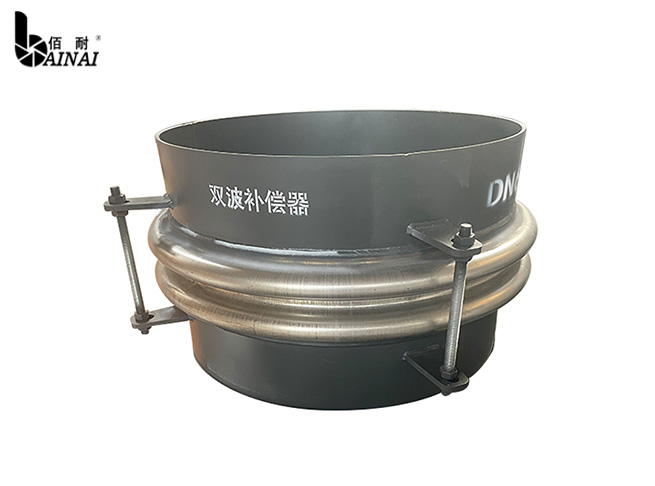

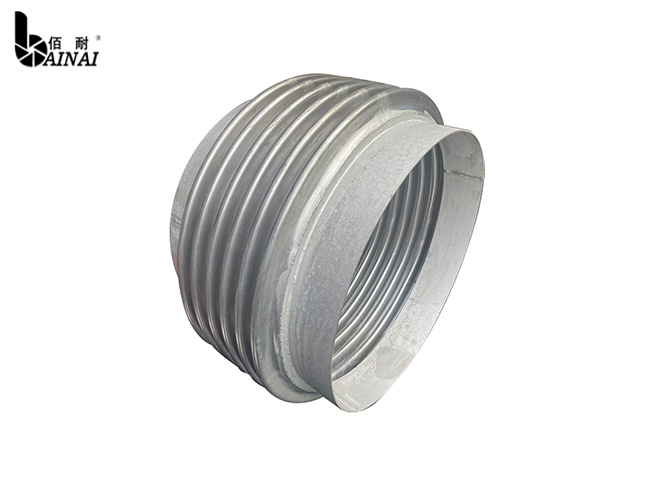

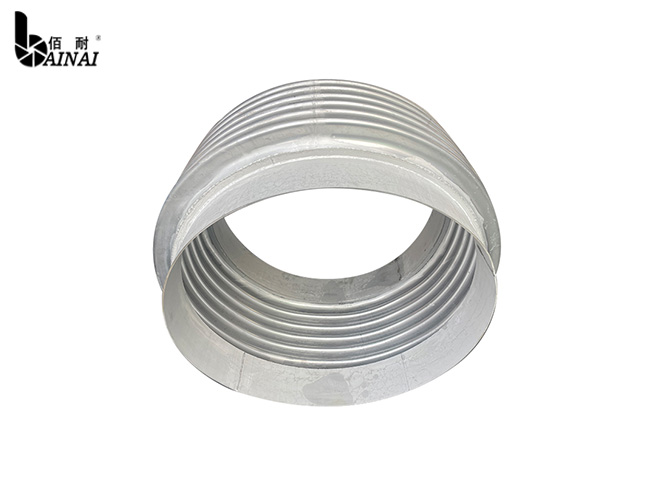

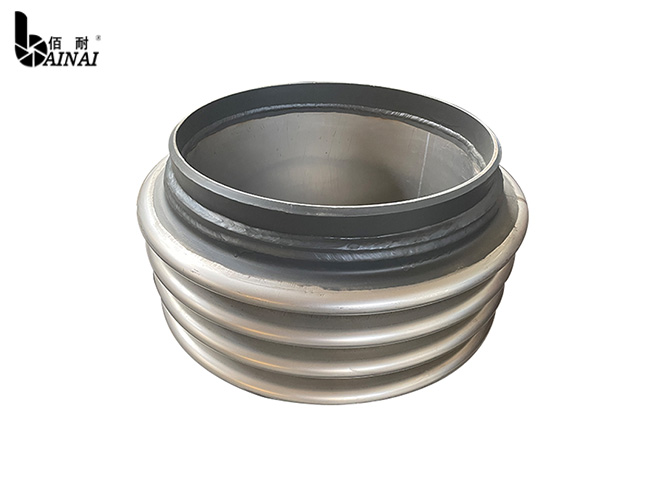

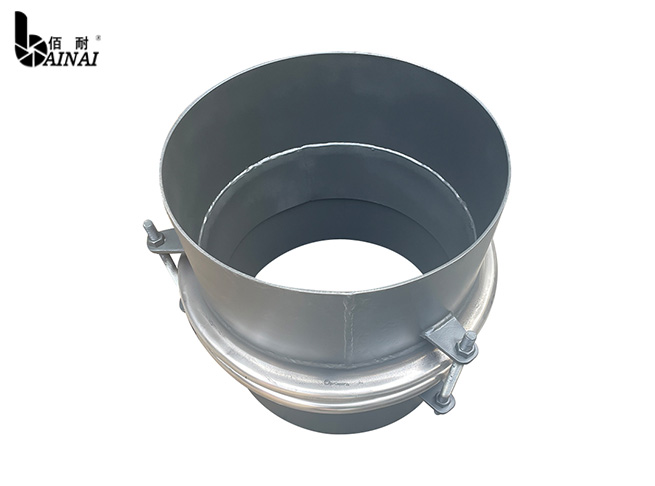

Welded Type Bellows Expansion Joint

FacebookTwitterLinkedInPinterestShare

Key Features

• 1.Welded Connections: The welded design provides a strong, leak-proof seal, which is ideal for high-pressure applications where flanged joints might be less suitable.

  2.Flexibility: The metal bellows can absorb significant axial, lateral, and angular movements, helping to manage thermal expansion and reduce stress on the piping system.

  3.Durability: Typically made from stainless steel or other corrosion-resistant alloys, welded bellows expansion joints can withstand high temperatures, pressures, and harsh environments, ensuring long-term performance.

  4.Compact Design: The absence of flanges allows for a more streamlined and compact installation, which is beneficial in tight spaces or when minimizing weight is essential.



Applications

• Welded type bellows expansion joints are commonly used in various industries, including:

  Chemical Processing: Employed in pipelines carrying corrosive chemicals, where a robust and leak-proof connection is critical.

  Power Generation: Used in steam and gas lines to accommodate thermal expansion and protect against mechanical stress.

  Oil and Gas: Implemented in exploration and refining processes, where high pressures and temperatures are common.

  Manufacturing: Found in systems that require flexibility and movement absorption, such as exhaust systems and cooling applications.

  Overall, welded type bellows expansion joints are essential components in maintaining the integrity and functionality of piping systems, providing reliable performance in demanding conditions while accommodating necessary movements.
